Fisher™ FIELDVUE™ DVC2000 Digital Valve Controller
DVC2000 digital valve controller features microprocessor communication, converts electric signals to pneumatic power, and substitutes conventional electro-pneumatic positioners.
Detailed technical parameters
| Fisher™ FIELDVUE™ DVC2000 Digital Valve Controller — Core Parameters | |
| Parameter | Specification |
| Input Signal | 4–20 mA DC, split-range capable; min 8.5 V DC (9.0 V DC for HART), max 30 V DC |
| Output Signal | Pneumatic, up to full supply pressure; span 0.5–7 bar (7–101 psig); single-acting, direct |
| Supply Pressure | Max 7 bar (100 psig); clean dry air per ISA 7.0.01 / ISO 8573-1 |
| Travel / Rotation | Linear stem 8–102 mm (0.31–4.0 in); rotary shaft 45–90° |
| Accuracy / Linearity | ±0.5% of output span; reference accuracy 1–2% of travel span (option dependent) |
| Ambient Temperature | –40 to +85 °C (–40 to 185 °F); LCD may be unreadable below –20 °C |
| Enclosure Rating | Aluminum housing, IP66 / NEMA 4X / Type 4X; HART communication with local LCD/keypad |

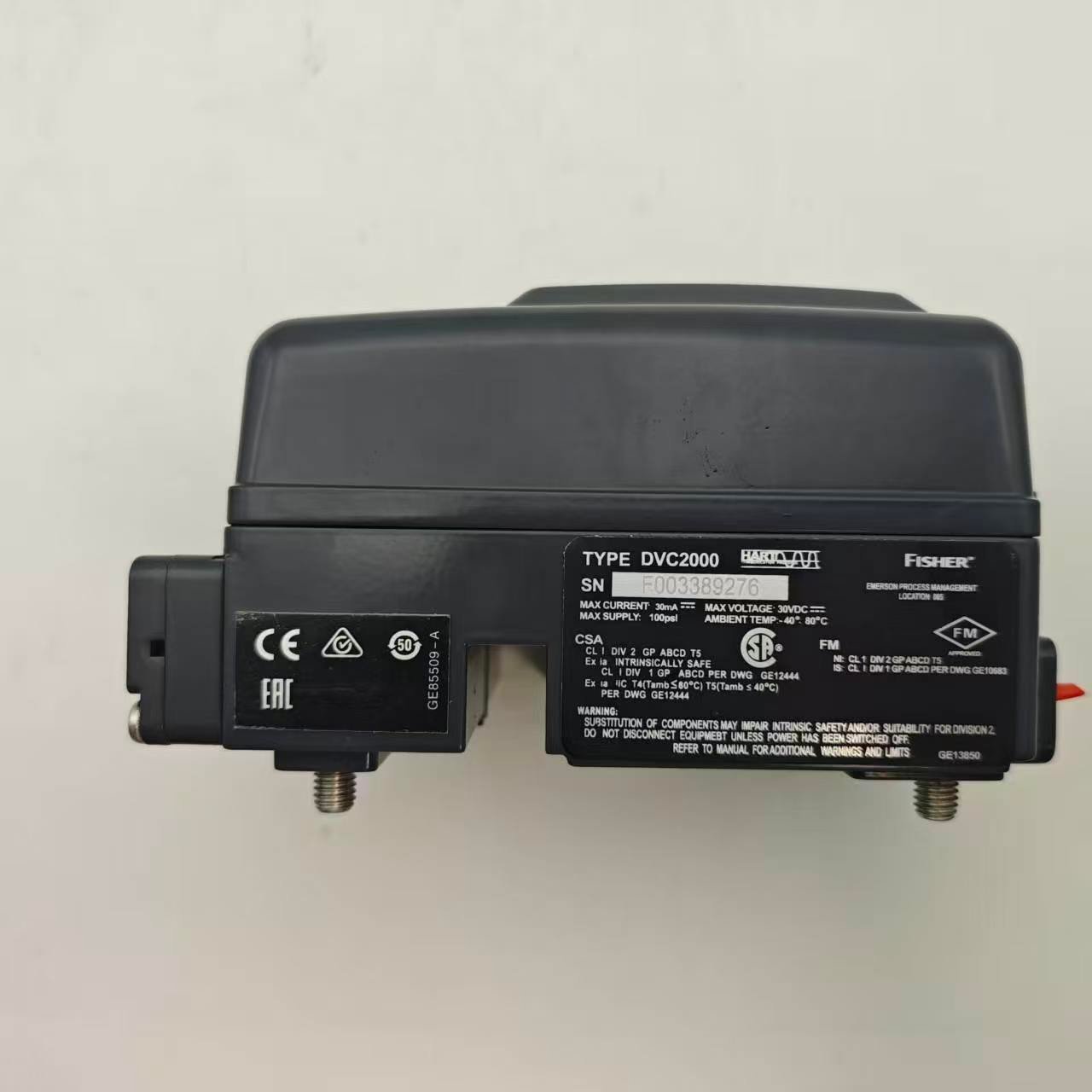

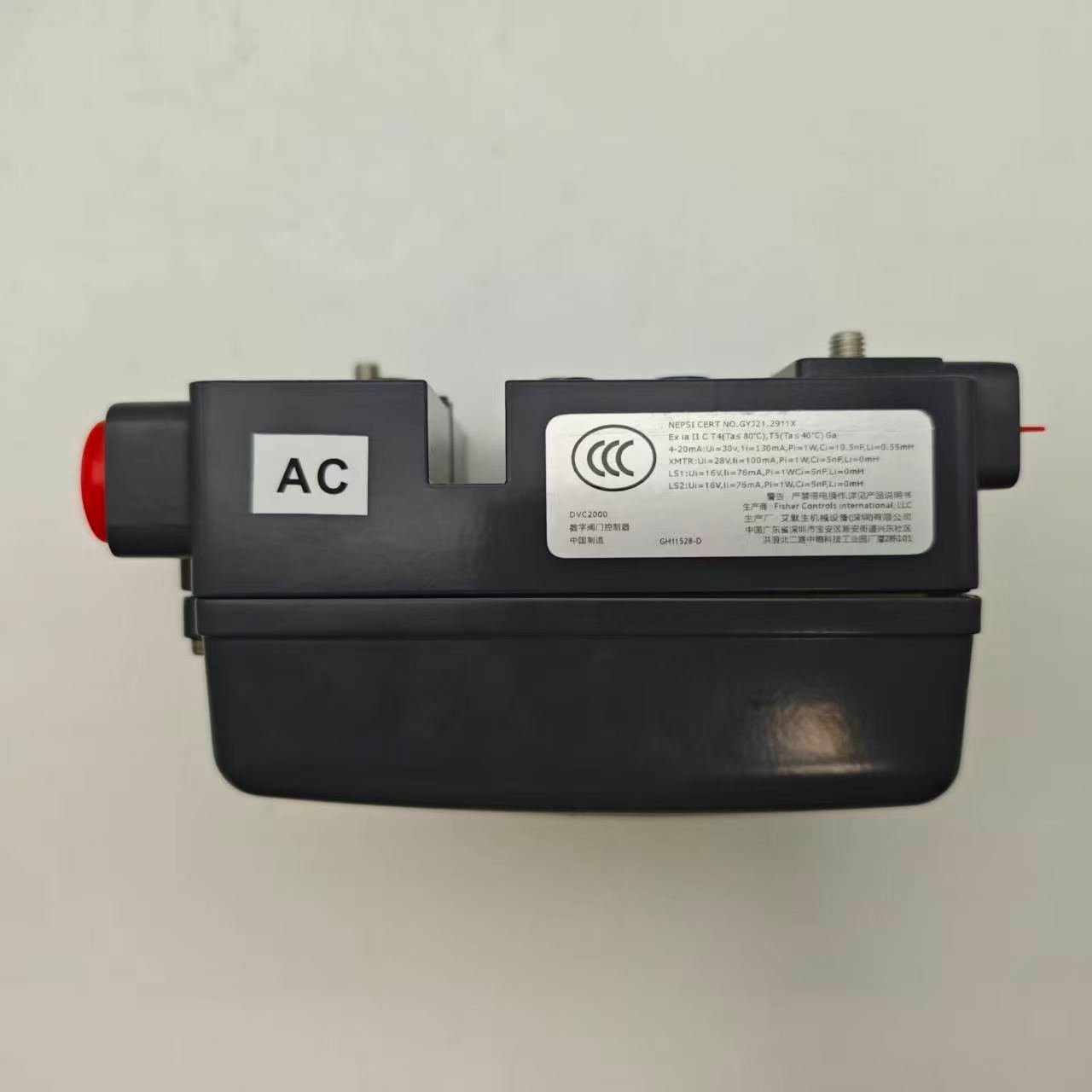

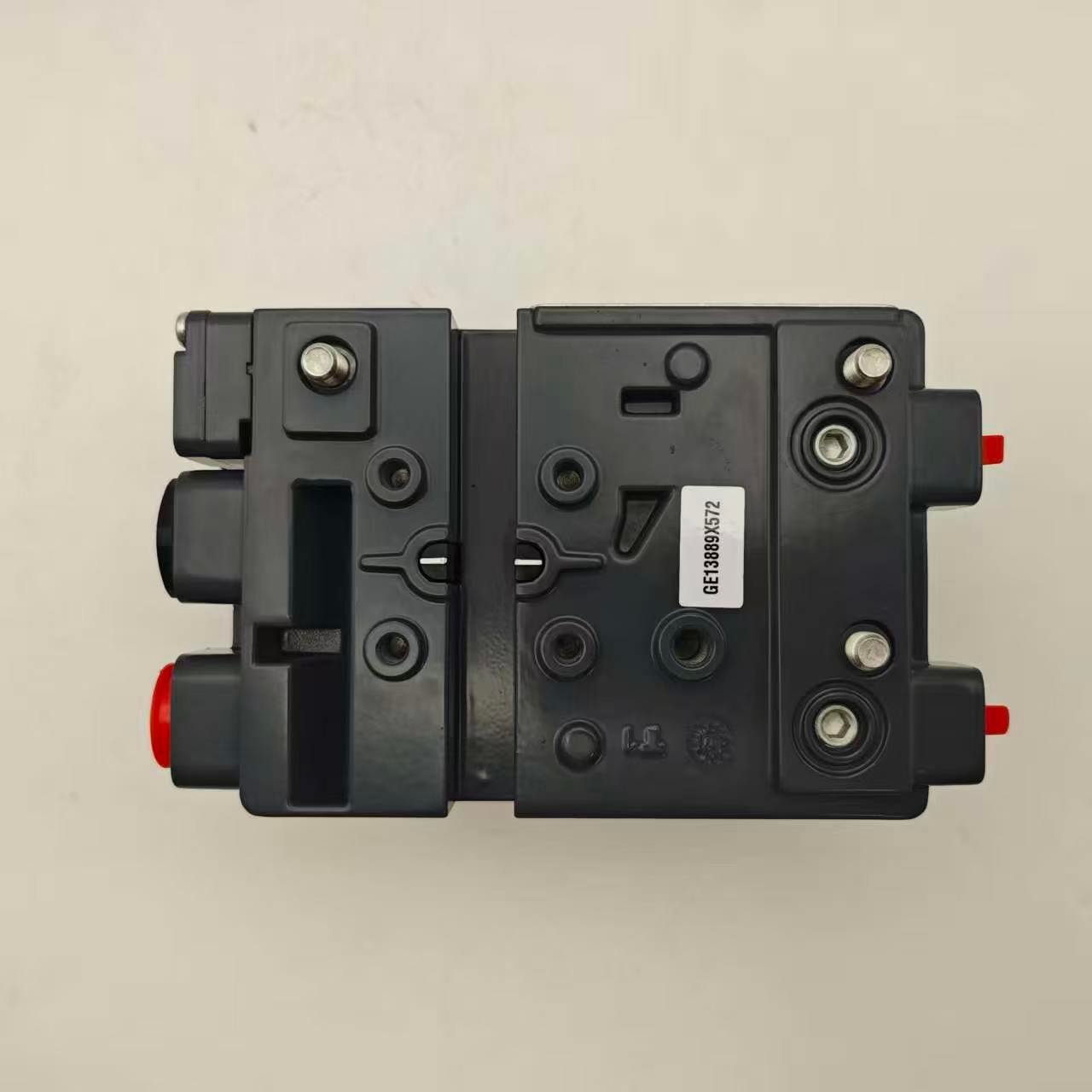

Product physical display
In addition to the traditional function of converting an input current signal (4 to 20 mA) to a
pneumatic output pressure, the DVC2000 digital valve controller communicates via a local
display panel and/or via the HART® protocol. An option is available which provides isolated
circuitry for two (2) integrated limit switches (for open/close valve indication) and a valve
position transmitter (for separate valve position feedback).
