Micro Motion 1700 Transmitter｜1700R12ABMDZZZPK
Product Overview

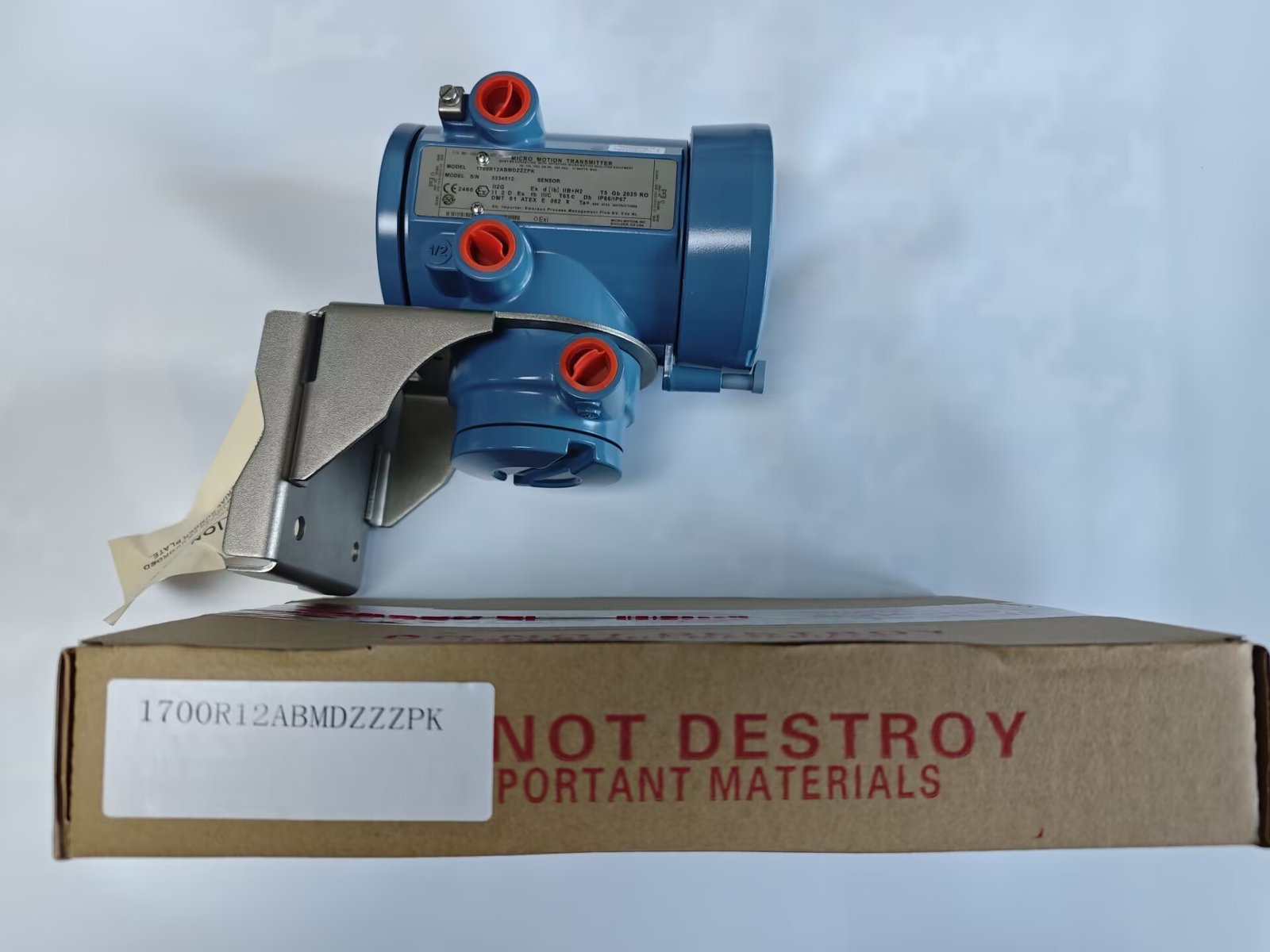

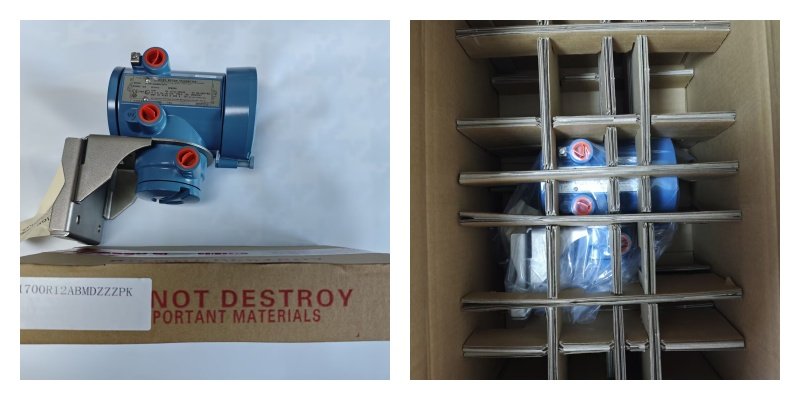

Micro Motion 1700 is an Emerson high-precision single variable Coriolis force transmitter that relies on MVD front-end digital signal processing technology to achieve stable measurement for harsh working conditions such as gas entrapment, high noise, and large range ratio. It supports remote installation and is compatible with all 4-wire/9-wire Micro Motion Coriolis sensors, and can output mass flow and volume flow; Support SIL2 safety certification and Smart Meter Verification, suitable for measuring the handover process of chemical, oil and gas, food and pharmaceutical trade. The case model we are introducing this time is Micro Motion 1700R12ABMDZZZPK
Model parameter analysis
| Field Code | Description |
|---|---|
| Base Model | 1700 Single‑Variable Field‑Mount Transmitter with MVD™ Digital Signal Processing Technology, Emerson |
| Mounting Code | R4‑wire Remote Separated Mount, Painted Aluminum Housing, Standard 3m 4‑Core Shielded PVC Cable |

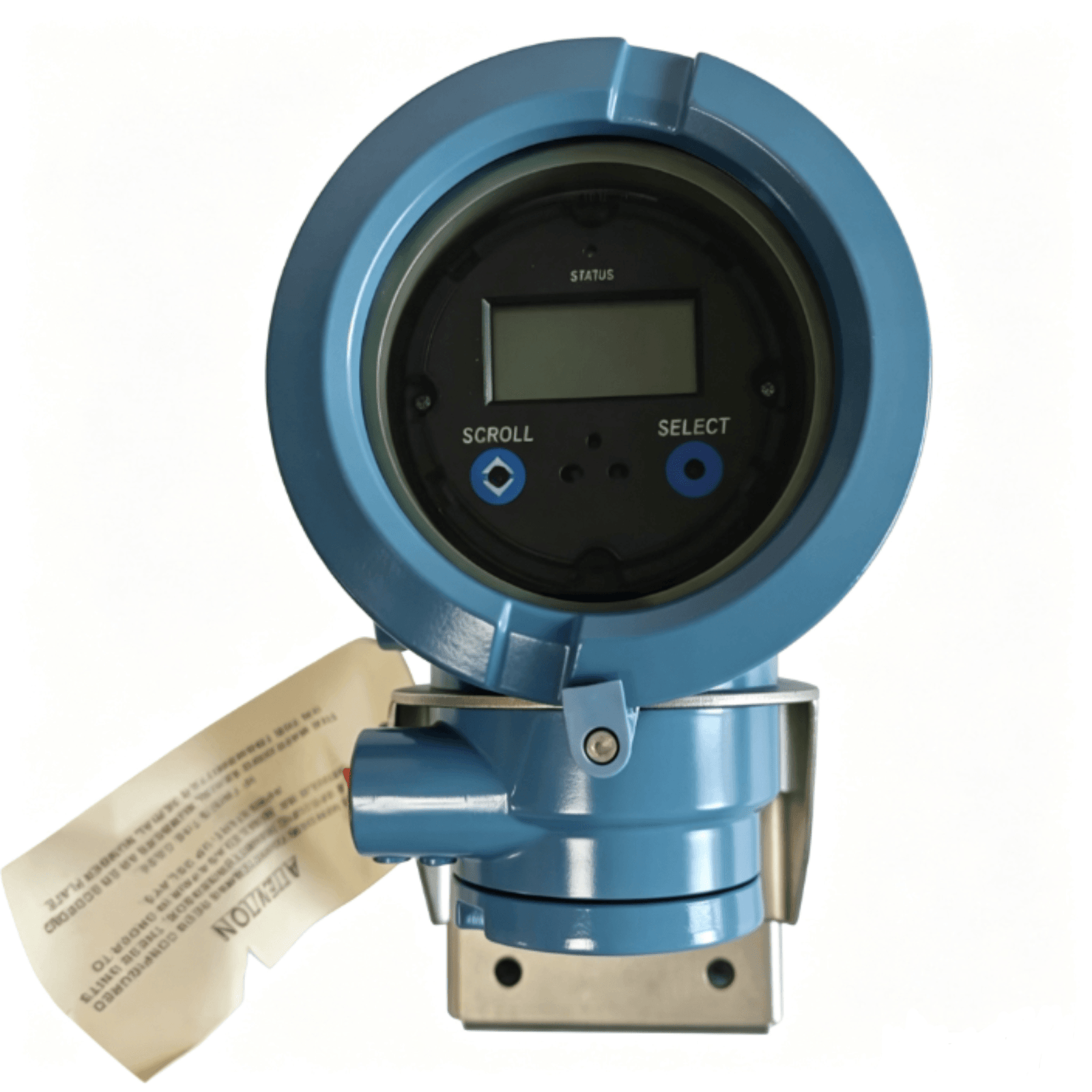

| Display Code | 1 Dual‑Line Standard LCD Display, Supports English/French/German/Spanish Languages, Optical Buttons, Zone 1 Explosion‑Proof Certification, Emerson |
| Power Code | 2 AC/DC Adaptive Power Supply: 18‑100VDC / 85‑265VAC, Automatic Input Voltage Switching |
| Output Code | A Analog Output: 1‑Channel 4‑20mA (HART7) + 1‑Channel Frequency / Discrete Output FO/DO + RS‑485 (HART/Modbus) |
| Explosion‑proof Certification | B ATEX Zone 2 Safe Area, Intrinsically‑Safe Sensor Output; Class I Div2 Certification, Emerson |
| Conduit Connection | M JIS B0202 Japanese Standard, Nickel‑Plated Brass Cable Gland |
| Software Option 1 | D Standard Flow Variables, No Additional Application Package |
| Software Option 2 | Z No Additional Software License |
| Factory Option | Z Standard Factory Configuration |
| Accessory | PK 2‑Inch Pipe U‑Clamp Mounting Kit |
Core Features

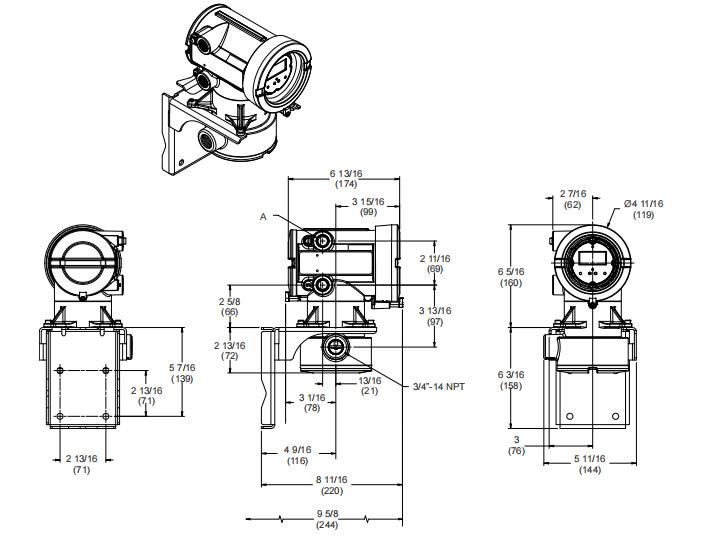

1700 and 2700 9-wire remote-mount transmitter and CP assembly with display This drawing is for a 1700 and 2700 9-wire remote-mount transmitter and core processor with a display that is made from painted aluminum housing.
Smart Meter Verification (SMV)
Online uninterrupted process conditions complete instrument self inspection, and calibration is completed within 90 seconds; The basic version comes with pass/mail for quick diagnosis; The authorized version supports exporting historical records and reports without the need for external standard tables.
Rich communication skills
HART7 (can downgrade HART5), RS-485 Modbus; An external 775 THUM adapter can be used to expand the wireless function of Wireless HART.
Technical Specifications
Power supply
– AC：85‑265VAC，50/60Hz； DC：18‑100VDC， Adaptive input
-Typical power consumption 6W, maximum 11W; overvoltage category II, pollution level 2mjwilsongr
I/O interface (output code-A)
1. 4‑20mA（HART Bell202）
-Non intrinsic safety active output; Maximum load 820 Ω; Follow NAMUR NE43; Output variables: mass flow rate/volume flow rate.
2. Frequency/Discrete Output FO/DO
-Active output, up to 10000Hz; configurable for pulse flow output or discrete alarm output (flow direction, fault, flow switch).
3. RS‑485：Modbus RTU / HART； The baud rate is 1200-38400bps, and the service port is temporarily debugged.
This is the basic model for 1700 4-wire and 9-wire. If you need the following products, please feel free to inquire.
4-wire-
| Column 1 | Column 2 | Column 3 | Column 4 | Column 5 |
|---|---|---|---|---|
| 1700R11AMBEZZZ | 1700R31AFPFZZZ | 1700R11AZGKZZZ‑PK | 1700R11IDMJMZZZ | 1700R11AIMDLCZZZ |
| 1700M11AFBMZZZ‑PK | 1700I11ABEEZZZ | 1700I31AZBEZZZ | 1700R11ADFBMVZZZ | 1700R11ABBEZZZ |
| 1700R21AFBEZZZ | 1700R31AZEEZZZ | 1700R11DBFEZZZ | 1700R11ABBJZZZ | 1700R11ABBLZZZ |
| 1700M11AMBEZZZ | 1700M21AMFEZZZ | 1700M31AMGEZZZ | 1700M11DMBEZZZ | 1700R11ABBEZCZZ |
| 1700R11ADBEZSVZ |
9-wire-
| Column 1 | Column 2 | Column 3 | Column 4 | Column 5 |
|---|---|---|---|---|
| 1700B11ABBEZZZ | 1700B21AFBEZZZ | 1700B31AZEEZZZ | 1700B11DBFEZZZ | 1700B11ABBJZZZ |
| 1700B11ABBLZZZ | 1700E11ABBEZZZ | 1700E11ABBEZCZZ | 1700E11ADBEZSVZ | 1700E21AFEEZZZ |
| 1700E31AZEEZCZZ | 1700E11ABBEZRZZ | 1700C11ABBEZZZ | 1700C21AFBGZZZ | 1700C31AZBEZZZ |
| 1700C11DBFEZKZZ | 1700C11ABBEZMZZ | 1700P11AMBEZZZ | 1700P21AMFEZZZ | 1700P31AMGEZZZ |
| 1700P11DMBEZZZ | 1700B11ABBEZZZ‑PK | 1700E11ABBEZCZZ‑PK | 1700C11ABBEZZZ‑PK | 1700P11AMBEZZZ‑PK |
