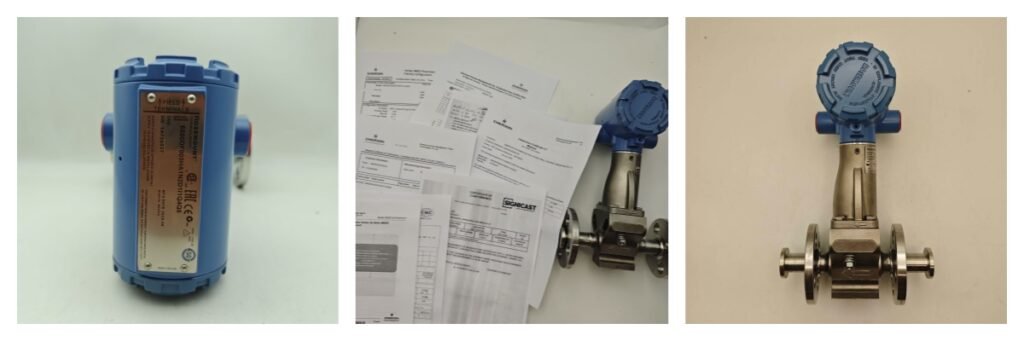

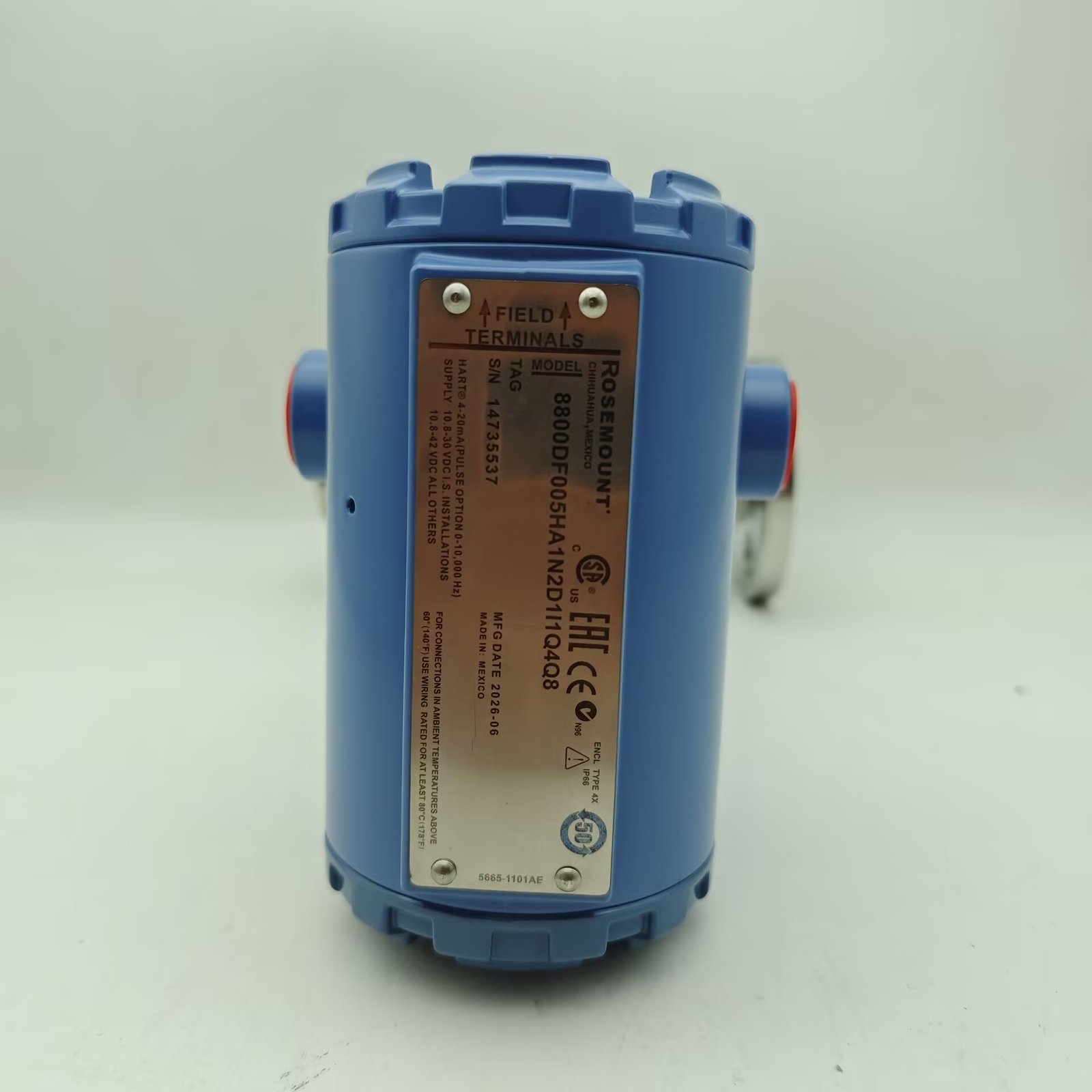

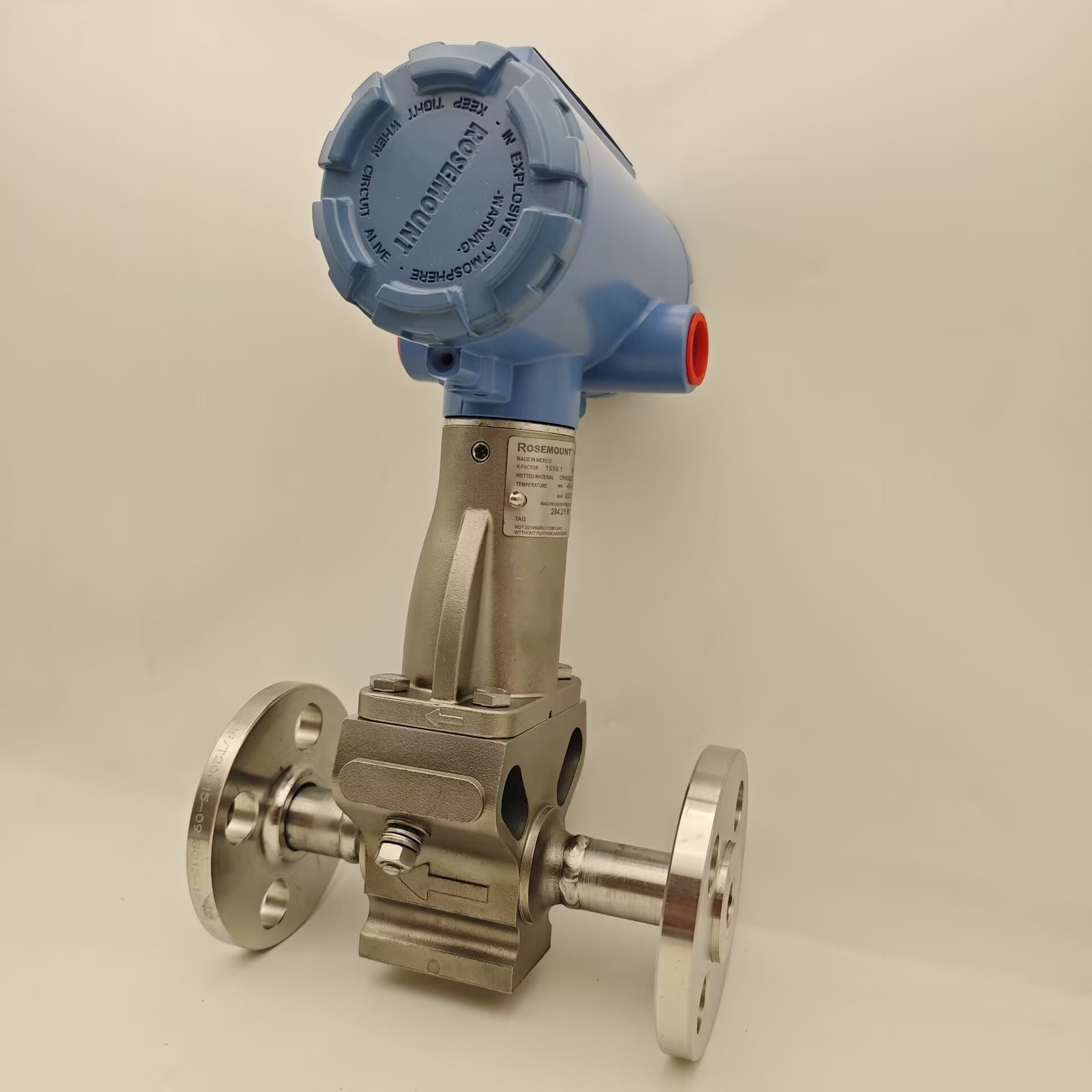

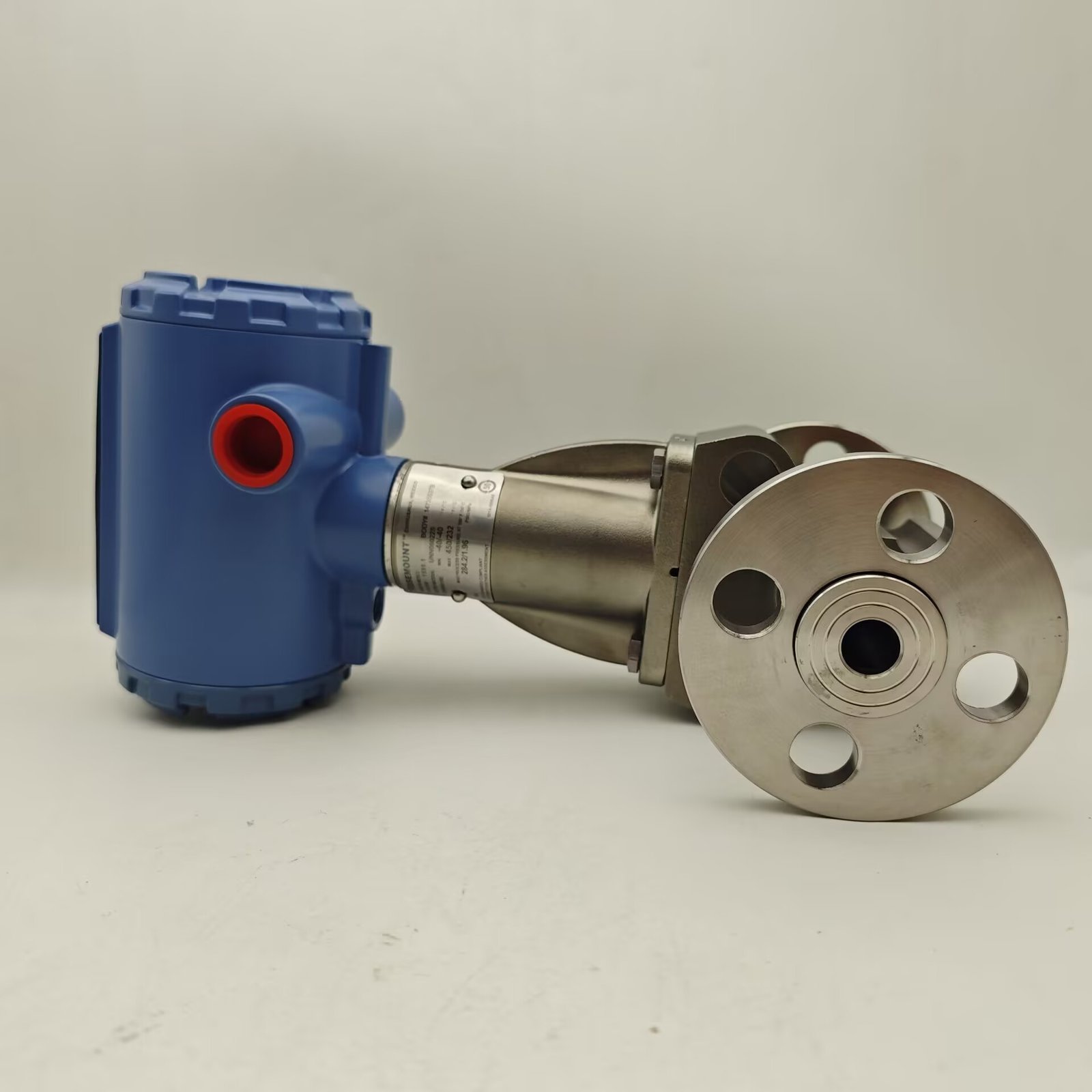

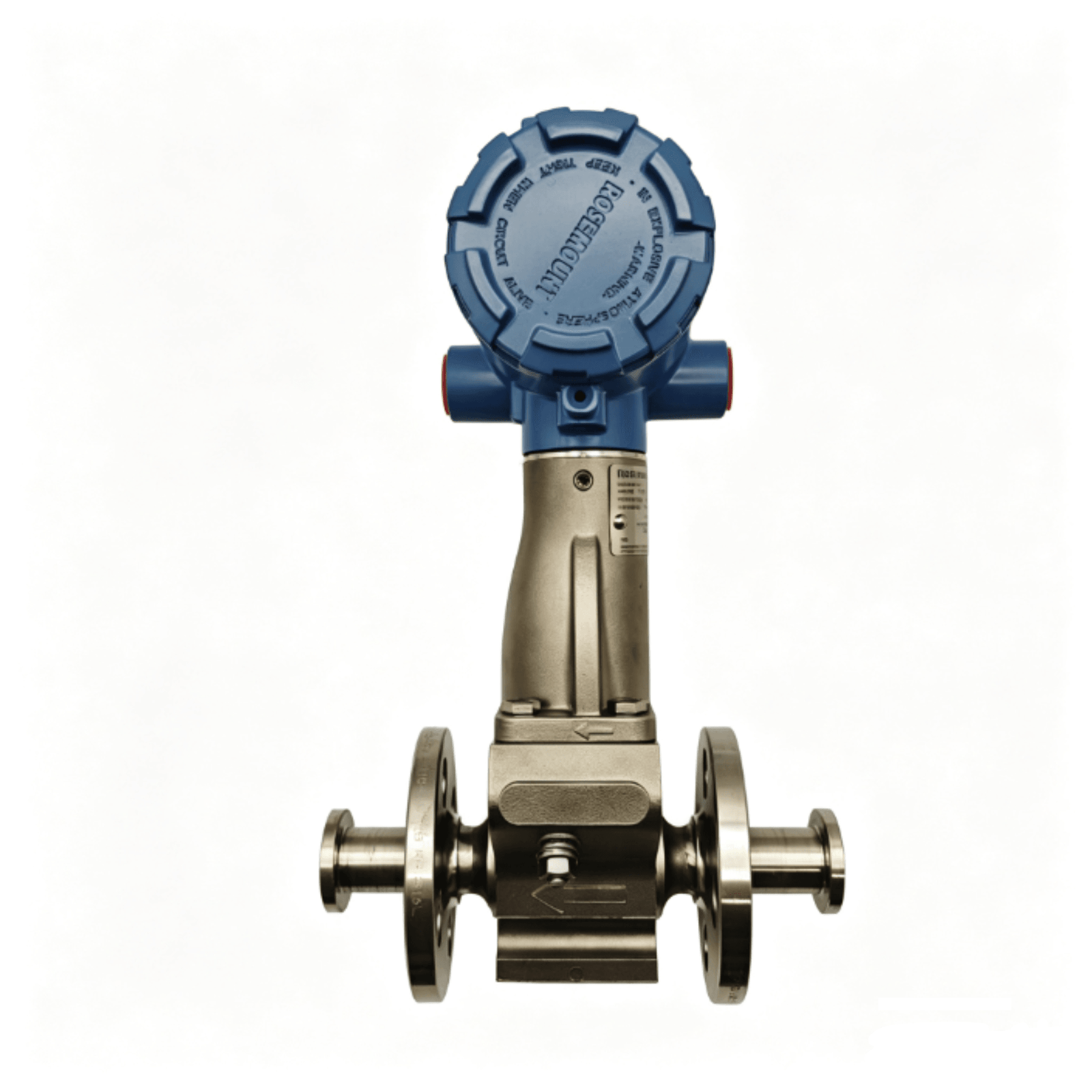

Rosemount 8800 Vortex Flow Meter 8800DF005HA1N2D1I11Q4Q8
Product Overview
The Rosemount 8800D vortex flowmeter is based on the Karman vortex principle, with a fully welded gasket free and unobstructed body, eliminating the risk of gasket leakage; The sensor has a non liquid isolation structure and can be replaced online without cutting off the process seal. It is suitable for measuring liquids, gases, and saturated vapors.

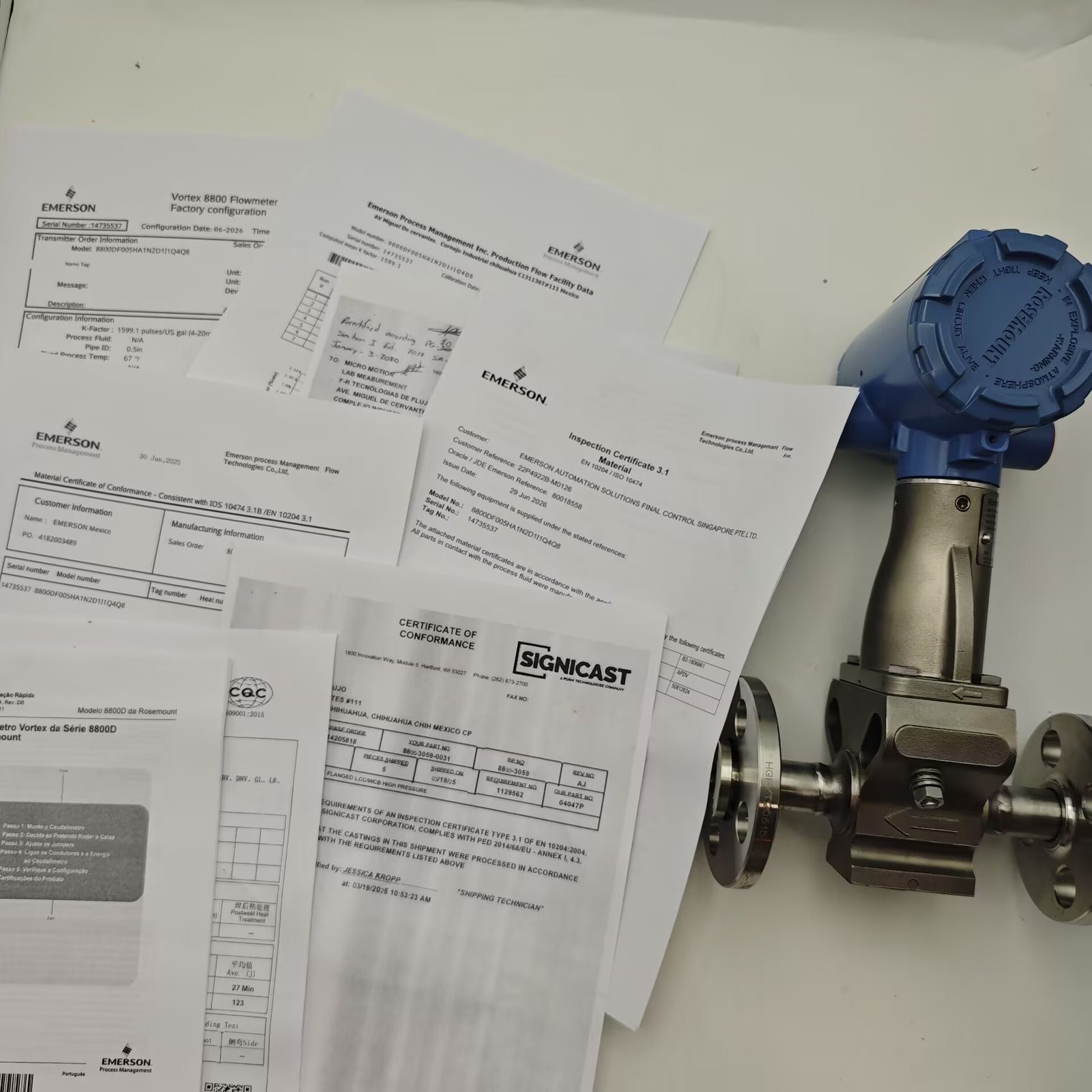

This 8800DF005H is made of DN15 flange and Hastelloy liquid contact material, suitable for corrosive media working conditions. It comes with HART communication, intrinsic safety explosion-proof, and a complete set of 3.1 material and calibration certificates.
The following are the basic models of 8800DF series with different calibers
| Model caliber code | Caliber specifications | Base Model |
|---|---|---|
| 005 | 1/2‑in. (15 mm) | 8800DF005AA1N2D1I11Q4Q8 |
| 010 | 1‑in. (25 mm) | 8800DF010AA1N2D1I11Q4Q8 |
| 015 | 1‑1/2‑in. (40 mm) | 8800DF015AA1N2D1I11Q4Q8 |
| 020 | 2‑in. (50 mm) | 8800DF020AA1N2D1I11Q4Q8 |
| 030 | 3‑in. (80 mm) | 8800DF030AA1N2D1I11Q4Q8 |
| 040 | 4‑in. (100 mm) | 8800DF040AA1N2D1I11Q4Q8 |
| 060 | 6‑in. (150 mm) | 8800DF060AA1N2D1I11Q4Q8 |
| 080 | 8‑in. (200 mm) | 8800DF080AA1N2D1I11Q4Q8 |
| 100 | 10‑in. (250 mm) | 8800DF100AA1N2D1I11Q4Q8 |
| 120 | 12‑in. (300 mm) | 8800DF120AA1N2D1I11Q4Q8 |
Product parameter characteristics
Brand: Rosemount
HART 4-20mA output * *, supports configuration and debugging of handheld devices and AMS equipment management software.
Explosion proof rating: ATEX/IECEx intrinsically safe explosion-proof I11, can be used in hazardous explosive areas.
Liquid (Reynolds number>20000): ± 0.65% reading
Gas/steam (Reynolds number>15000): ± 1.0% reading
Repeatability: ± 0.1% actual flow Emerson
-Flange face – total length Face to face: 6.8 inches (173 mm)
-Weight: 9.1 lb (4.1 kg)
8800DF005HA1N2D1I11Q4Q8 Operating Conditions
-Nominal diameter: DN15 (1/2 “)
-Flange standard: ASME B16.5 RF Class150
-Wetting material: Hastelloy C-22 (UNS N06022) casting CW2M nickel alloy
-Medium temperature range: -40 ℃~+232 ℃ (N standard sensor)
-Environmental temperature: -50 ℃~+85 ℃; Equipped with LCD display -20~+85 ℃
-Shell protection: IP66, Type4X
-Power supply: 10.8-42 VDC, two-wire circuit power supply
-Output signal: 4-20mA superimposed with HART digital signal
-Explosion proof certification: ATEX ia, IECEx ia intrinsically safe explosion-proof
