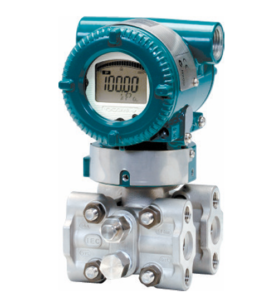

Yokogawa EJA110E Differential Pressure Transmitter
Product Overview
Belonging to Yokogawa OpreX EJA‑E series DPharp transmitter portfolio, the EJA110E‑JMS4G‑922EN is a field‑mount differential pressure transmitter. It features a single‑crystal silicon resonant sensor and measures flow, level, density and differential pressure for liquid, gas or steam media. It delivers 4‑20 mA DC signal proportional to the measured differential‑pressure value.
EJA110E Key Features
Measurement Type：Differential Pressure
Sensor Tech：DPharp single‑crystal silicon resonant sensor
Output：4‑20 mA DC with HART protocol
Reference Accuracy：±0.055% of span
Response Time：90 ms
Safety Certification：SIL 2

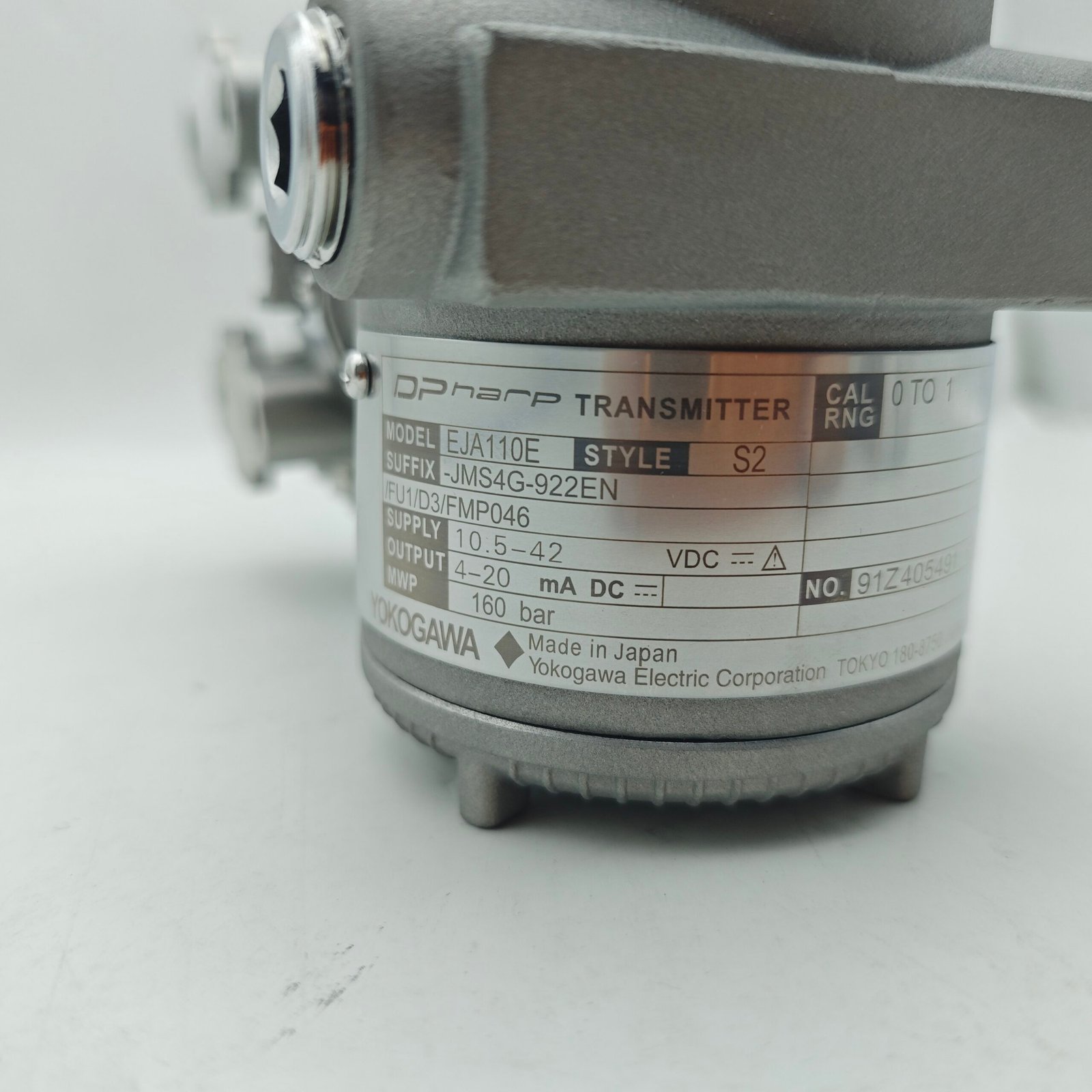

Yokogawa EJA110E‑JMS4G‑922EN model code disassembly
EJA110E: EJA-E series differential pressure transmitter with DPharp single-crystal silicon resonant sensor
J:4 to 20 mA DC with digital communication (HART 5/HART 7 protocol)*1
M: 1 to 100 kPa (4 to 400 inH2O)
S: Wetted parts: Hastelloy C-276 diaphragm, 316L SS flange and other wetted surfaces
4: With 1/2 NPT female process connector
G: : Bolt and nut material: 316L stainless steel
9: Horizontal piping, high‑pressure side on left
2: Amplifier housing: ASTM CF‑8M stainless‑steel housing
2: Electrical connection: dual 1/2 NPT female ports, without blind plug
E: Local LCD digital indicator
N: Without mounting bracket

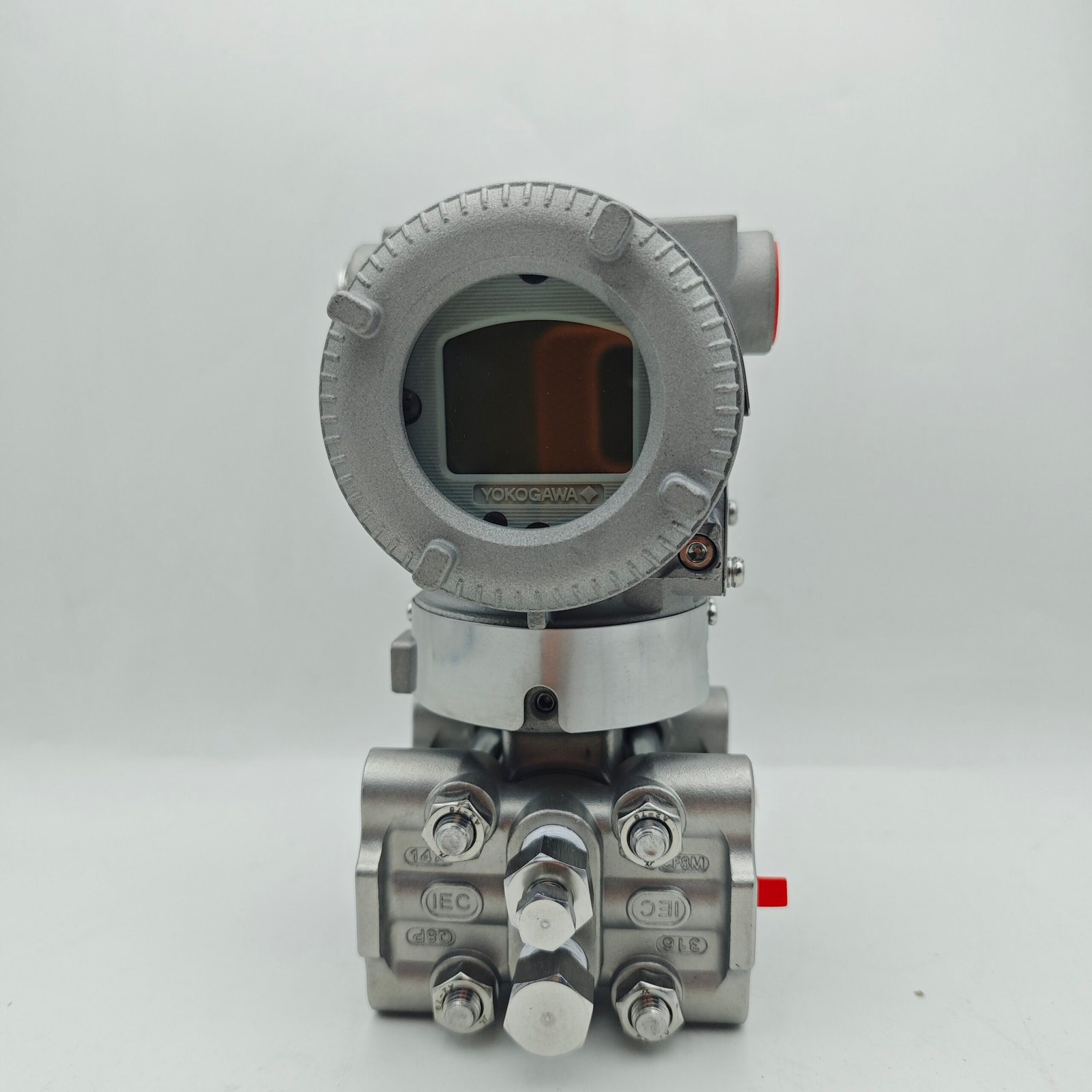

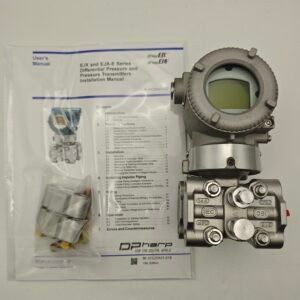

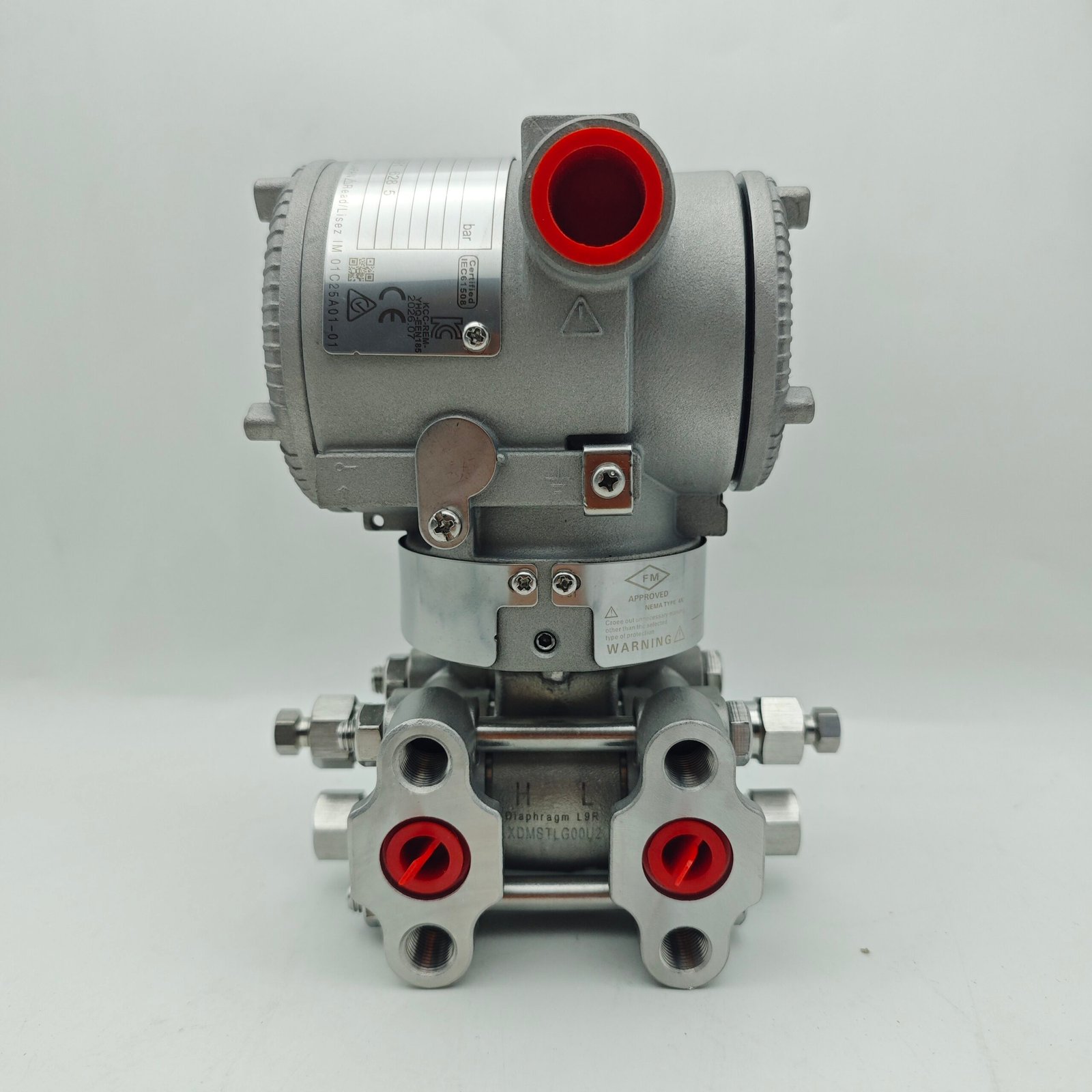

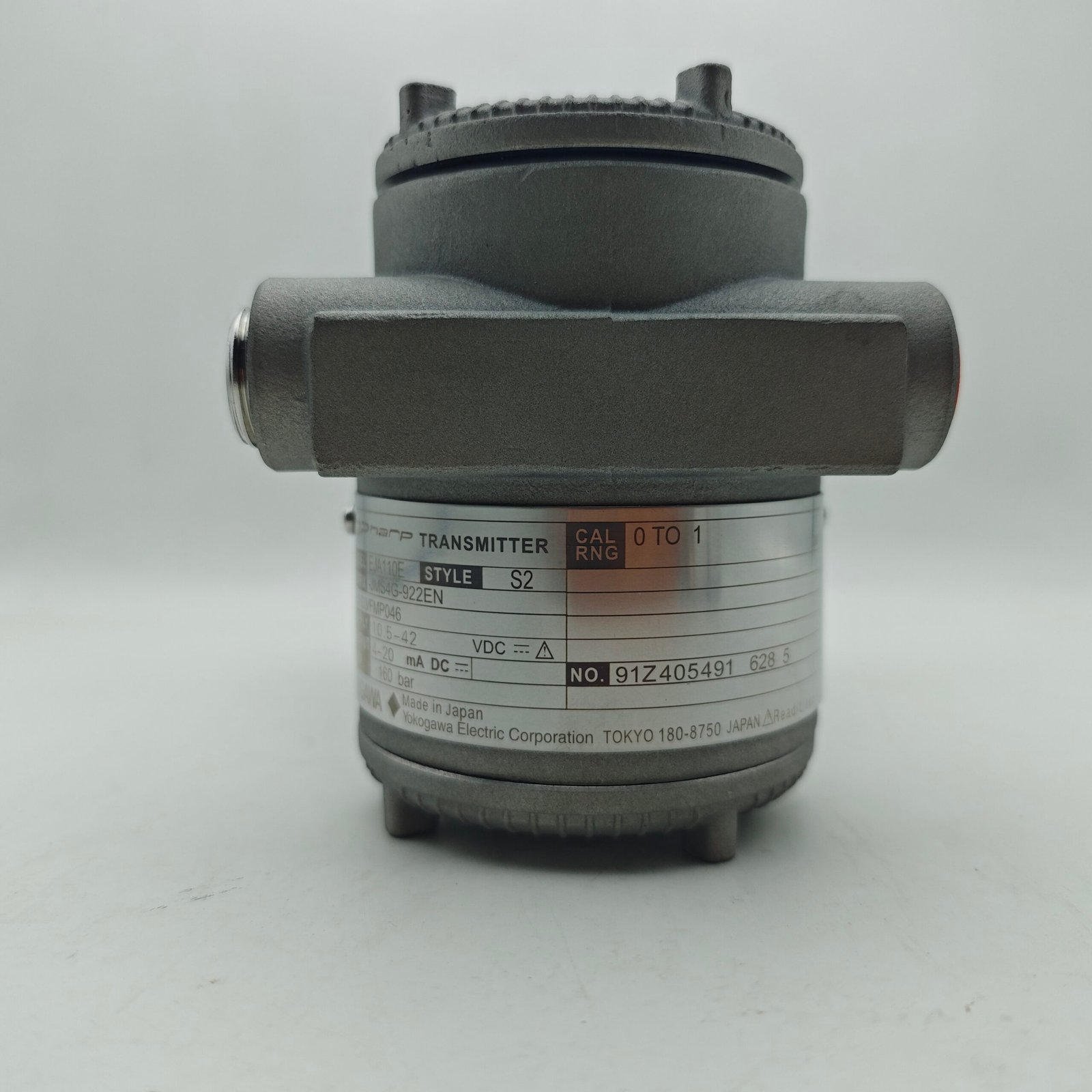

Product physical display
