When choosing Rosemount temperature transmitters, we often encounter a problem. 248 VS 644 VS 3144P. How should we choose these three types of temperature transmitters?
As the most popular temperature transmitter series from Emerson Rosemount, the 248, 644, and 3144P models cover entry-level monitoring, standard process control, and high-end safety-critical applications. However, many system integrators and plant managers struggle to distinguish their differences and select the most cost-effective model for specific working conditions.
In this complete guide, we break down the positioning, key features, technical differences, and applicable scenarios of the Rosemount 248, 644, and 3144P temperature transmitters to help you make a precise selection.
1. Product Positioning Overview
Rosemount 248: Entry-Level Cost-Effective Transmitter
The Rosemount 248 is designed for general-purpose temperature monitoring. It is a compact, lightweight head-mount temperature transmitter built for standard, non-critical measurement points. With simplified functions and stable basic performance, it is the best choice for mass deployment and budget-sensitive projects.
It focuses on basic signal conversion and loop monitoring, eliminating redundant advanced functions to control costs while maintaining Emerson’s industrial-grade reliability.
Rosemount 644: Mid-Range Universal Workhorse
The Rosemount 644 is the most versatile mainstream model for factory process control. It balances high precision, flexible installation, and intelligent diagnostics, covering 80% of standard industrial temperature measurement scenarios.
Supporting multiple installation methods, dual-sensor input, and full fieldbus protocols, the 644 serves as a unified standard transmitter for entire plant automation renovation and daily production control.
Rosemount 3144P: High-End SIL-Critical Flagship Transmitter
The Rosemount 3144P is Emerson’s top-tier safety-grade integrated temperature transmitter, tailored for hazardous areas, SIS safety interlock systems, and extreme working conditions. It integrates industry-exclusive X-well non-intrusive measurement technology, Bluetooth on-site configuration, and ultra-long-term stability, minimizing downtime and maintenance frequency for key process points.
2. Core Features & Technical Differences

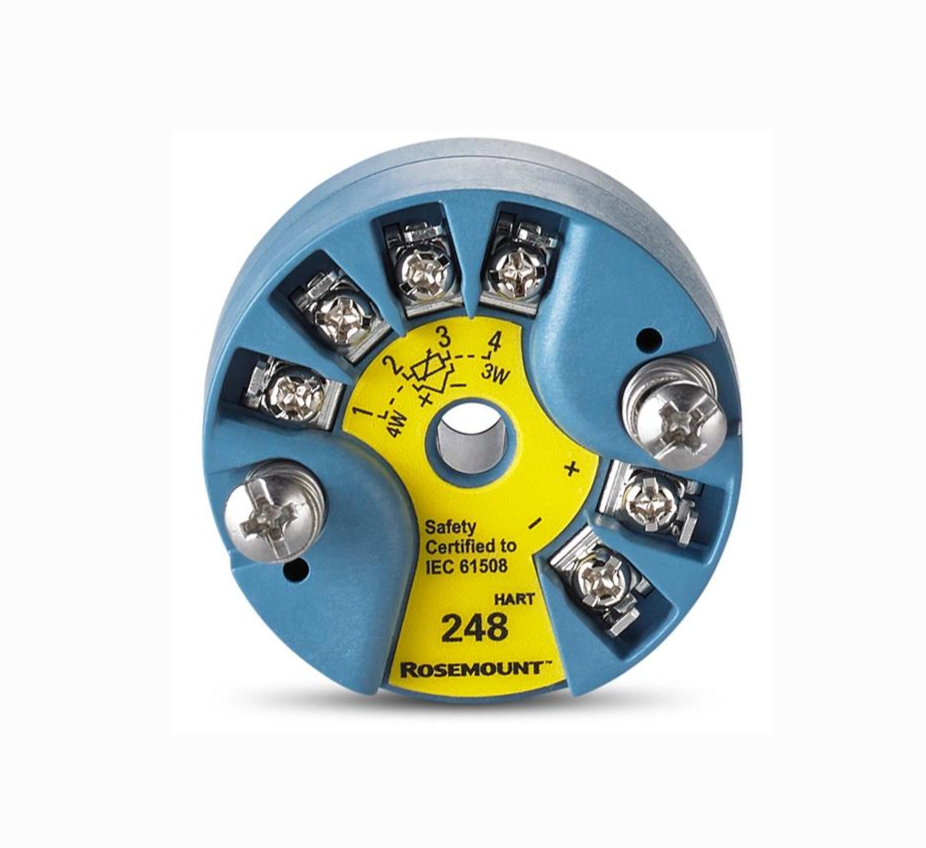

Rosemount 248 Key Features
- Compact & Lightweight Design: Mini 44mm diameter body (only 50g), perfect for installation inside standard thermocouple junction boxes without space constraints.
- Single-Channel Input: Supports RTD, thermocouple, mV, and resistance signals, meeting basic single-point temperature monitoring needs.
- Basic Safety & Stability: 1-year stability guarantee, 2.5kV AC electrical isolation, and SIL 2 safety certification.
- Simple Diagnostics: Provides sensor open/short circuit fault alarm to avoid invalid data.
- Standard Communication: 4-20mA + HART protocol, compatible with most conventional DCS systems.
- Cost Advantage: The lowest cost among the three models, ideal for large-scale ordinary monitoring points.

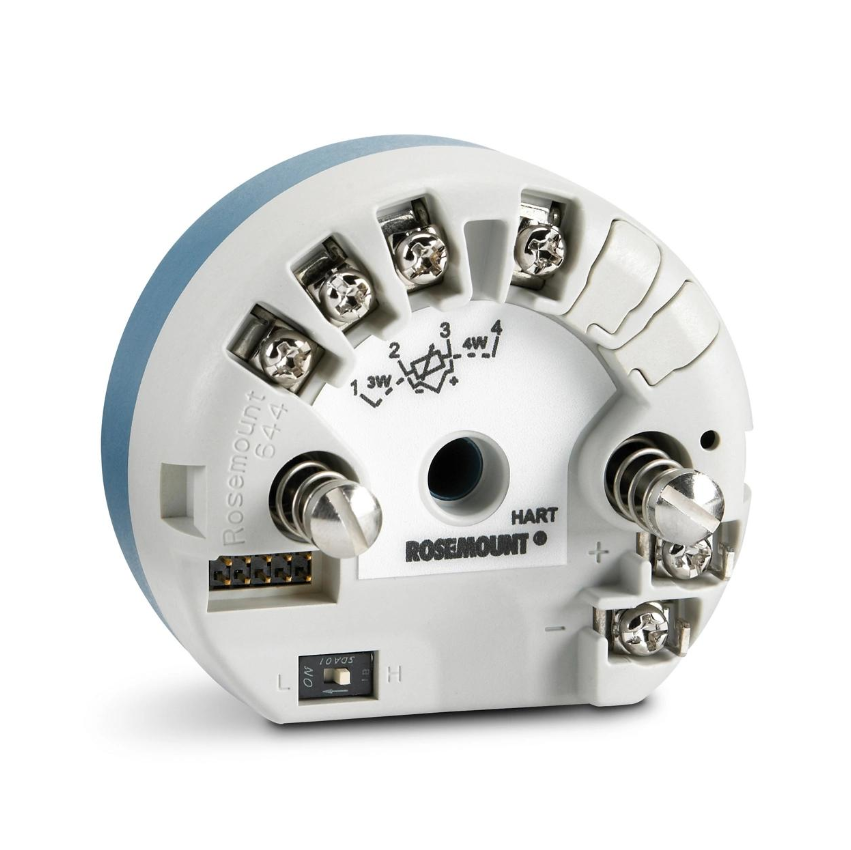

Rosemount 644 Key Features
- Three Flexible Installation Modes: Supports head mount, DIN rail mount, and field wall mount, adapting to cabinet centralized installation and on-site scattered installation.
- Dual-Sensor Measurement: Optional dual-channel input, realizing hot backup, temperature difference/average value measurement, and sensor drift early warning to prevent single-point failure shutdown.
- Advanced Diagnostics: Monitors thermocouple aging, sensor drift, and loop integrity, effectively reducing unplanned downtime.
- Full Protocol Compatibility: Supports HART 5/7, FOUNDATION Fieldbus, and PROFIBUS PA, reserving space for subsequent digital transformation.
- Optional Local Operation: Equippable with LOI local indicator, enabling on-site configuration without a handheld communicator.
- Reliable Safety Performance: SIL 2 / SIL 3 certification, with complete explosion-proof and anti-corrosion protection options.

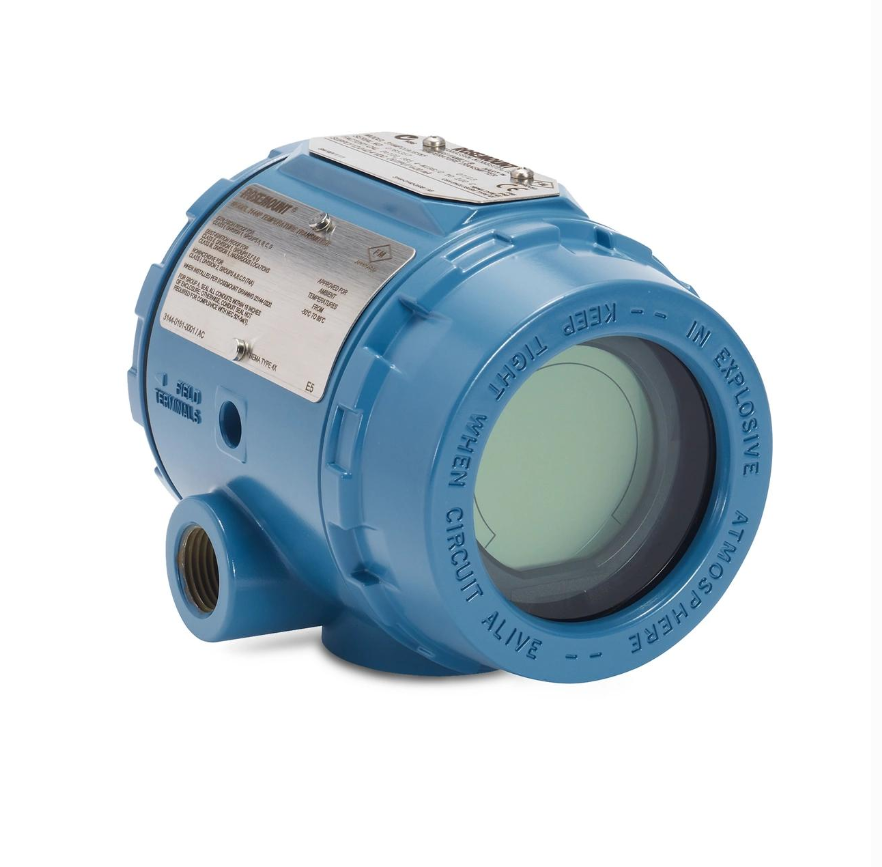

Rosemount 3144P Key Features
- Dual-Chamber Explosion-Proof Structure: Integrated IP67 field-mounted housing, isolated circuit design, excellent shockproof, moisture-proof, and corrosion-resistant performance, suitable for outdoor and harsh hazardous areas.
- Exclusive X-well Non-Intrusive Technology: No pipe drilling or thermowell required. Clamps directly on the pipe wall to measure medium temperature, eliminating leakage risks and reducing reconstruction costs.
- Wireless Bluetooth Configuration: Supports on-site Bluetooth debugging, no hot work required for high-altitude and dangerous positions, greatly improving operation safety.
- Ultra-Long Stability: 5-year standard stability (up to 20 years for high-end versions), extending calibration cycles and reducing maintenance frequency.
- Highest Safety Level: Native SIL 3 safety certification, the standard configuration for oil & gas and chemical SIS safety interlock systems.
- Intelligent Adaptive Function: ReadyConnect plug-and-play sensor recognition, automatic line mode switching for RTD faults, ensuring non-stop operation.
3. Parameter Comparison Table: 248 vs 644 vs 3144P
| Comparison Dimension | Rosemount 248 | Rosemount 644 | Rosemount 3144P |
|---|---|---|---|
| Market Positioning | Entry-level economical model | Mid-range universal workhorse | High-end safety flagship model |
| Sensor Channel | Single channel only | Single / Dual channel optional | Single / Dual channel |
| Installation Method | Head mount, optional DIN rail | Head / Rail / Wall mount 3-in-1 | Integrated field explosion-proof mount |
| Stability Period | 1 year | 2 years | 5 years (max 20 years) |
| Diagnostic Capability | Basic open/short circuit alarm | Aging & drift monitoring, hot backup | Full-link SIS diagnosis, fault prediction |
| Local Operation | No local display/key | Optional LOI local configuration | Standard display + Bluetooth debug |
| Communication | 4-20mA + HART | HART / FF / PROFIBUS PA | HART / FF + Bluetooth |
| Safety Certification | SIL 2 | SIL 2 / SIL 3 | Native SIL 3 |
| Core Technology | Mini isolated transmission | Multi-scene adaptive, dual-sensor redundancy | X-well non-intrusive measurement, dual-chamber explosion-proof |
4. Application & Selection Guide
Choose Rosemount 248 If:
- You need mass temperature monitoring for non-critical points, such as HVAC, cooling water, and ordinary storage tanks.
- The project has a strict budget and only requires standard 4-20mA signal conversion.
- The installation space inside the junction box is limited and requires a compact transmitter.
- No SIS safety interlock or advanced diagnostic functions are needed.
Value Advantage: Minimize hardware and installation costs while maintaining reliable basic measurement performance, the best solution for batch deployment.
Choose Rosemount 644 If:
- You need unified standard transmitters for entire factory process control (chemical, power, water treatment, food & beverage).
- The site has both cabinet centralized installation and field dispersed installation scenarios.
- Dual-sensor redundancy is required to avoid production shutdown caused by single sensor failure.
- Future digital fieldbus system upgrades are planned.
Value Advantage: Zero adaptation pressure for multiple working conditions, effectively reducing plant maintenance risks and standardizing spare part management.
Choose Rosemount 3144P If:
- Applied in high-risk explosive areas such as oil & gas exploration and refining, matching SIS safety systems.
- Pipeline reconstruction is required without hot work or drilling, relying on X-well non-intrusive measurement.
- High-altitude and inaccessible measurement points require safe wireless debugging.
- Unattended remote stations need ultra-long calibration cycles to reduce on-site maintenance.
Value Advantage: Fully guarantees the safety and stability of key processes, greatly reducing long-term operation and maintenance costs and construction risks.
5. Final Conclusion
There is no absolute “best” temperature transmitter, only themost suitable model for your process conditions. The Rosemount 248 focuses on cost performance for general monitoring, the 644 provides balanced performance for mainstream process control, and the 3144P delivers top-level safety and intelligence for critical hazardous working conditions.
Selecting the right transmitter can effectively improve measurement accuracy, reduce failure rates, and optimize overall project costs.
We can provide other Rosemount products such as 248,644,3144P mentioned above. If you are interested in our products. Looking forward to your inquiry.

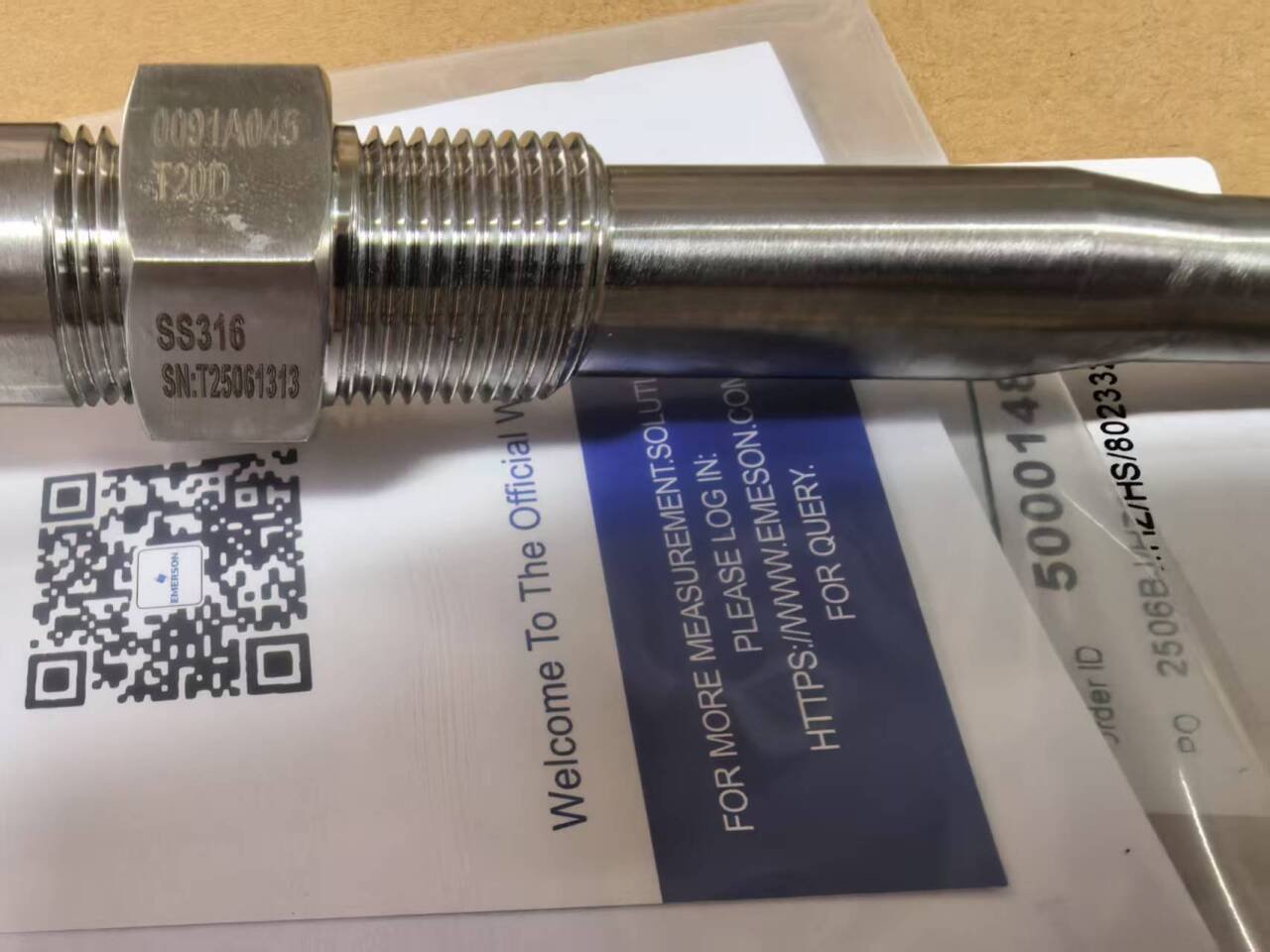

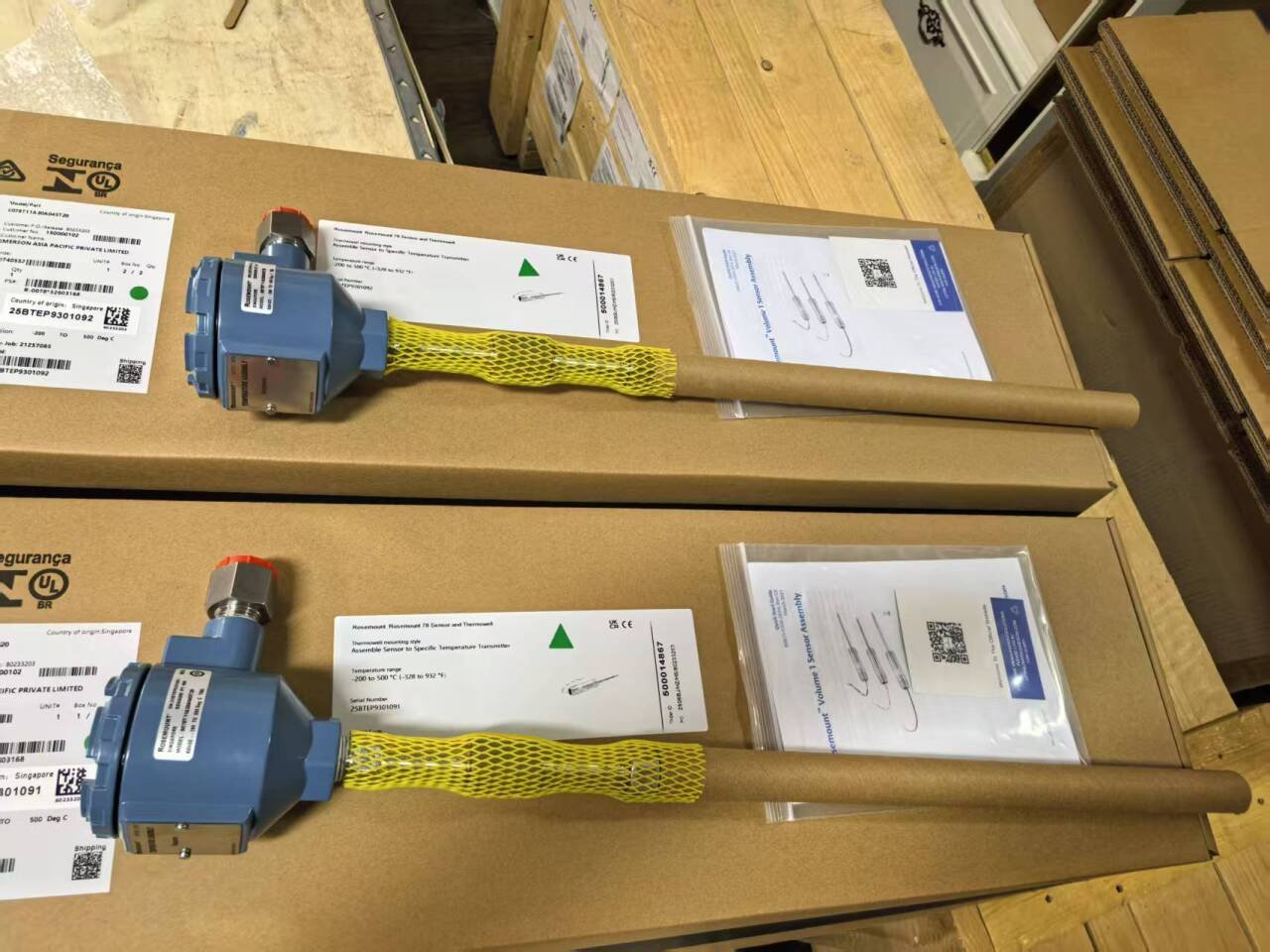

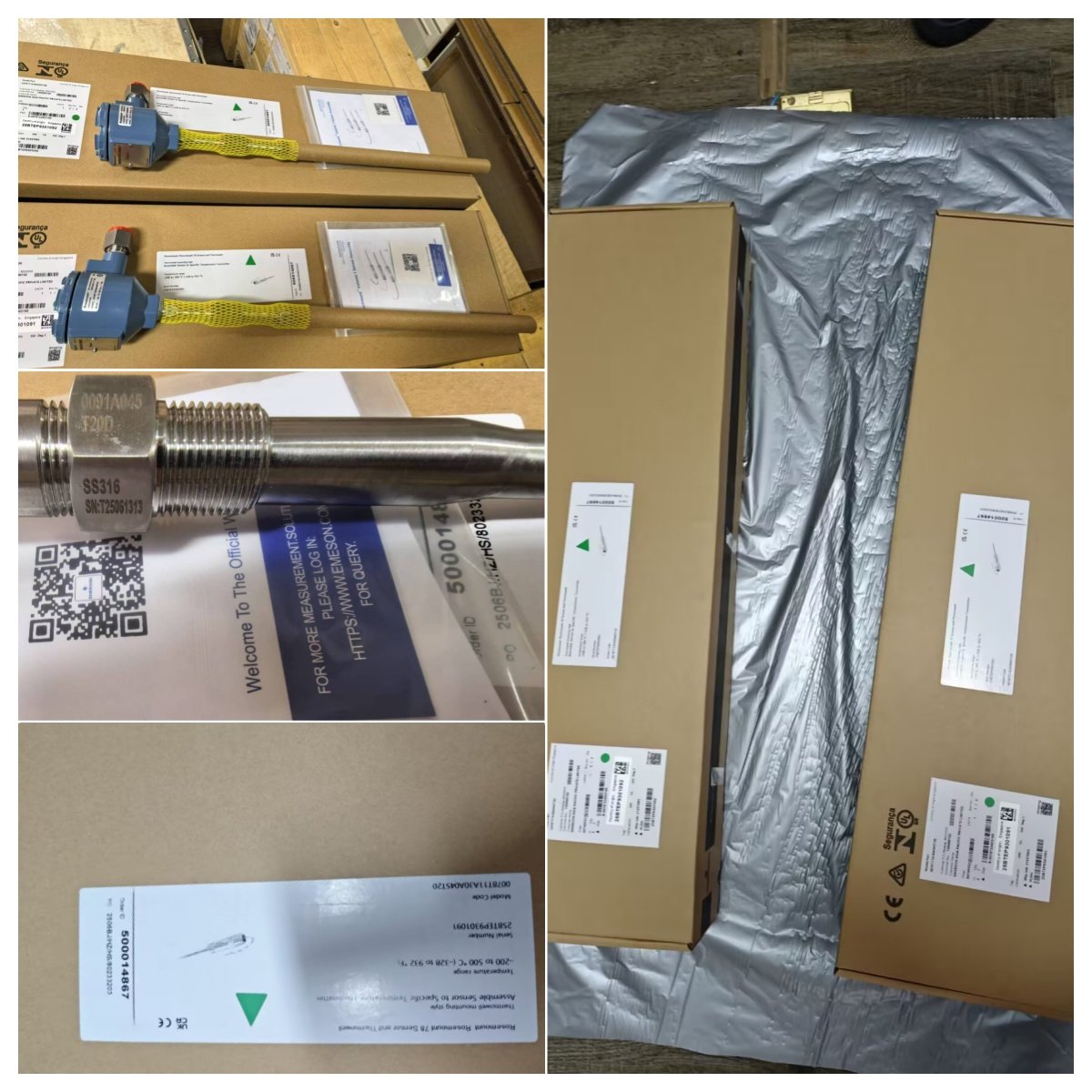

Below is our rosemount temperature transmitter pictures .
